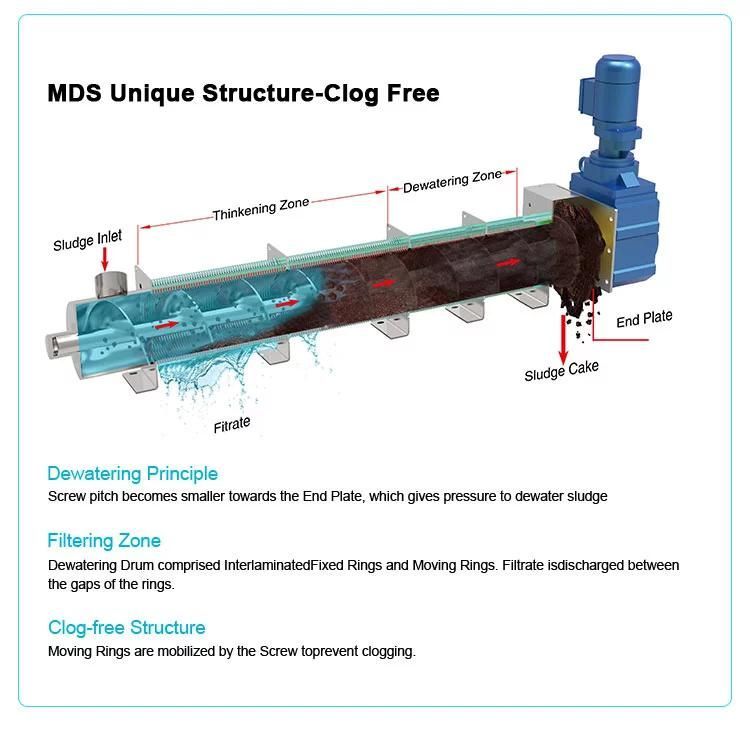

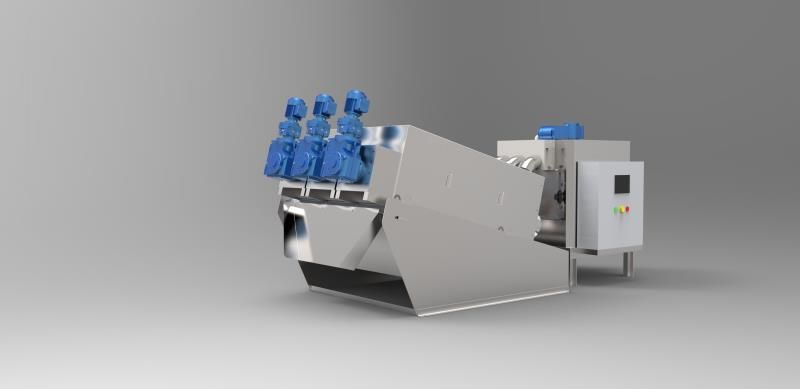

The initial section of dewatering drum is the Thickening Zone, where the solid-liquid separating process takes place and where the filtrate will also be discharged. The pitch of the screw and the gaps between the rings decrease at the end of dewatering drum, hence increasing its internal pressure. At the end, the End Plate further increases the pressure, so as to discharge dry sludge cake.

MDS Model Selection


Model

WAS Sludge

& Chemical Precipitated Sludge

(Thin Sludge)



Dissolved Air Flotation Sludge

Mixed Raw Sludge

Aerobic Digested Sludge

& Sewage Sludge

Sludge Concentration (TS)



0.2%



1%



2%



5%



3%

BC-MDS 051

~0.4 kg-DS/hr
(0.2 m³/hr)

~0.6 kg-DS/hr

(0.06 m³/hr)

~2 kg-DS/hr

(0.1 m³/hr)

~4 kg-DS/hr
(0.08 m³/hr)

~5 kg-DS/hr
(0.16 m³/hr)

BC-MDS 101

~2 kg-DS/hr
(1.0 m³/hr)

~3 kg-DS/hr
(0.3 m³/hr)

~5 kg-DS/hr
(0.25 m³/hr)

~10 kg-DS/hr
(0.2 m³/hr)

~13 kg-DS/hr
(0.43 m³/hr)

BC-MDS 131

~4 kg-DS/hr
(2.0 m³/hr)

~6 kg-DS/hr
(0.6 m³/hr)

~10 kg-DS/hr
(0.5 m³/hr)

~20 kg-DS/hr
(0.4 m³/hr)

~26 kg-DS/hr
(0.87 m³/hr)

BC-MDS 132

~8 kg-DS/hr
(4.0 m³/hr)

~12 kg-DS/hr
(1.2 m³/hr)

~20 kg-DS/hr
(1.0 m³/hr)

~40 kg-DS/hr
(0.8 m³/hr)

~52 kg-DS/hr
(1.73 m³/hr)

BC-MDS 202

~16 kg-DS/hr
(8.0 m³/hr)

~24 kg-DS/hr
(2.4 m³/hr)

~40 kg-DS/hr
(2.0 m³/hr)

~80 kg-DS/hr
(1.6 m³/hr)

~104 kg-DS/hr
(3.47 m³/hr)

BC-MDS 311

~20 kg-DS/hr
(10 m³/hr)

~30 kg-DS/hr
(3.0 m³/hr)

~50 kg-DS/hr
(2.5 m³/hr)

~100 kg-DS/hr
(2.0 m³/hr)

~130 kg-DS/hr
(4.33 m³/hr)

BC-MDS 312

~40 kg-DS/hr
(20 m³/hr)

~60 kg-DS/hr
(6.0 m³/hr)

~100 kg-DS/hr
(5.0 m³/hr)

~200 kg-DS/hr
(4.0 m³/hr)

~260 kg-DS/hr
(8.67 m³/hr)

BC-MDS 313

~60 kg-DS/hr
(30 m³/hr)

~90 kg-DS/hr
(9.0 m³/hr)

~150 kg-DS/hr
(7.5 m³/hr)

~300 kg-DS/hr
(6.0 m³/hr)

~390 kg-DS/hr
(13 m³/hr)

BC-MDS 412

~80 kg-DS/hr
(40 m³/hr)

~120 kg-DS/hr
(12 m³/hr)

~200 kg-DS/hr
(10 m³/hr)

~400 kg-DS/hr
(8.0 m³/hr)

~520 kg-DS/hr
(17.3 m³/hr)

BC-MDS 413

~120 kg-DS/hr
(60 m³/hr)

~180 kg-DS/hr
(18 m³/hr)

~300 kg-DS/hr
(15 m³/hr)

~600 kg-DS/hr
(12 m³/hr)

~780 kg-DS/hr
(26 m³/hr)


Main Features


1)Japan original technology, Japan quality control.


2) Direct dewatering thin sludge from Oxidation Ditch.


3) Wide variety of sizes, widely applications.


4) Low running cost, 24-hour automated operation.


5) Easy operation & maintenance, long service life (≥15 years).


6) Clog-free design, suitable for oily sludge.


7) Small footprint, smart design.


MDS Specifications


Model

Cylinder Specifications/mm

Sludge Cake Outlet Distance/mm



Machine Specifications/mm

Net Weight

KG

Running Weight

KG

Power

KW

Rinsing Water

L/h




Length

Width

Height





BC-MDS 051

Ø50*1

215

1105

656

980

100

120

0.2

12

BC-MDS 101

Ø100*1

215

1816

756

1040

200

290

0.2

24

BC-MDS 131

Ø130*1

250

1969

756

1040

220

315

0.2

24

BC-MDS 132

Ø130*2

250

2069

910

1040

305

450

0.3

48

BC-MDS 202

Ø200*2

350

2500

935

1270

520

730

0.8

64

BC-MDS 311

Ø310*1

495

3255

985

1600

910

1320

0.8

40

BC-MDS 312

Ø310*2

495

3455

1295

1600

1530

2230

1.2

80

BC-MDS 313

Ø310*3

495

3605

1690

1600

2090

3080

1.95

120

BC-MDS 412

Ø410*2

585

4140

1550

2250

2450

3400

3.75

144

BC-MDS 413

Ø410*3

585

4420

2100

2250

3350

4850

6.0

216



Running Conditions


Model



Power

/kw

Rinsing Water Pressure

Maintenance Frequency

Vulnerable Part Replacement Cycle

/h


Screw

Mixer

Total



Screw shaft

Moving rings

BC-MDS 051

0.1

0.1

0.2

0.1Mpa-0.2Mpa

(no need high pressure washing device, tap water is fine)

5min/day

1000

5000

BC-MDS 101

0.1

0.1

0.2



1000

5000

BC-MDS 131

0.1

0.1

0.2



1000

5000

BC-MDS 132

0.2

0.1

0.3



1000

5000

BC-MDS 202

0.4

0.4

0.8



15000

7500

BC-MDS 311

0.4

0.4

0.8



30000

10000

BC-MDS 312

0.8

0.4

1.2



30000

10000

BC-MDS 313

1.2

0.75

1.95



30000

10000

BC-MDS 412

3.0

0.75

3.75



30000

10000

BC-MDS 413

4.5

1.5

6



30000

10000
